Widget Man SQC2 -- Dual Step-Up / Step-Down / Sine-to-Square Converter 669439381229

CONVERT SINE TO DIGITAL
STEP 5V to 12V
STEP 12V to 5V
“MIRROR” ANY SIGNAL!

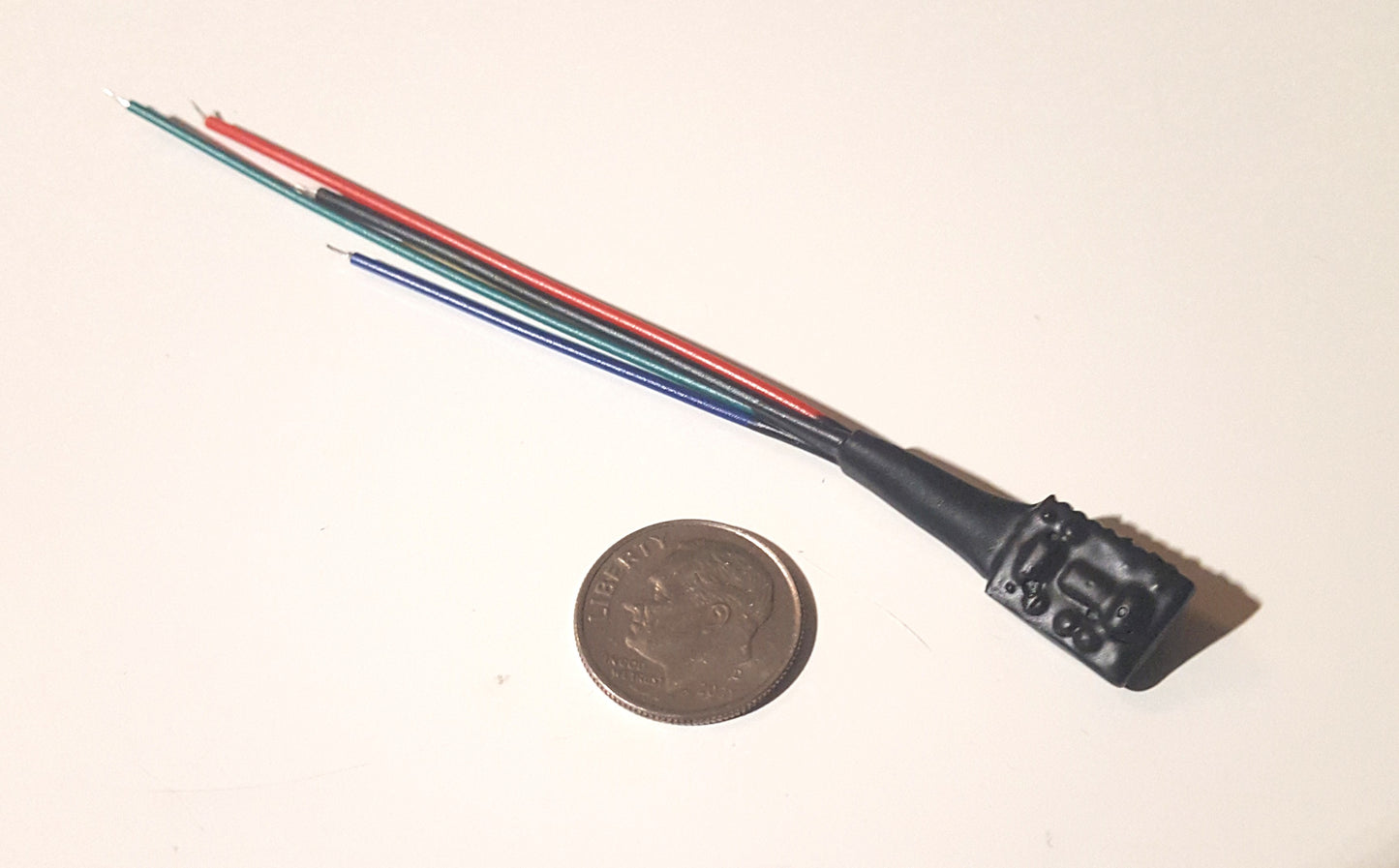

This handy device is the “utility infielder” of the WM line. If you think it's “just a transistor”, look again. It's a pair of high-voltage, sensitive-base transistors potted into a high-temperature epoxy/urethane package along with all the support resistors. Smaller than a pinkie-nail, it will easily hide in any spider hole or wrap-up invisibly beneath harness tape. With a trigger as low as 0.8V, it will easily digitize the weeniest AC voltages from German CKP's and diesel pumps. Hook the trigger to a 12V signal and power to 5V, it's a step-down. Reverse the voltages and it's a step-up. Use just the green wire and it inverts the input to “mirror” any signal, use the yellow and green to provide mirrored +/- outputs for ECU's that need them. Call it “tiny but mighty!”
