Widget Man VCM -- Voltage Matcher for APP/APS/TPS 743407120826
Widget Man VCM -- Voltage Matcher for APP/APS/TPS 743407120826
SKU:VCMv00
Low stock: 5 left
PRECISION-MATCH ANY PEDAL OR THROTTLE SENSOR TO ANY ECU!

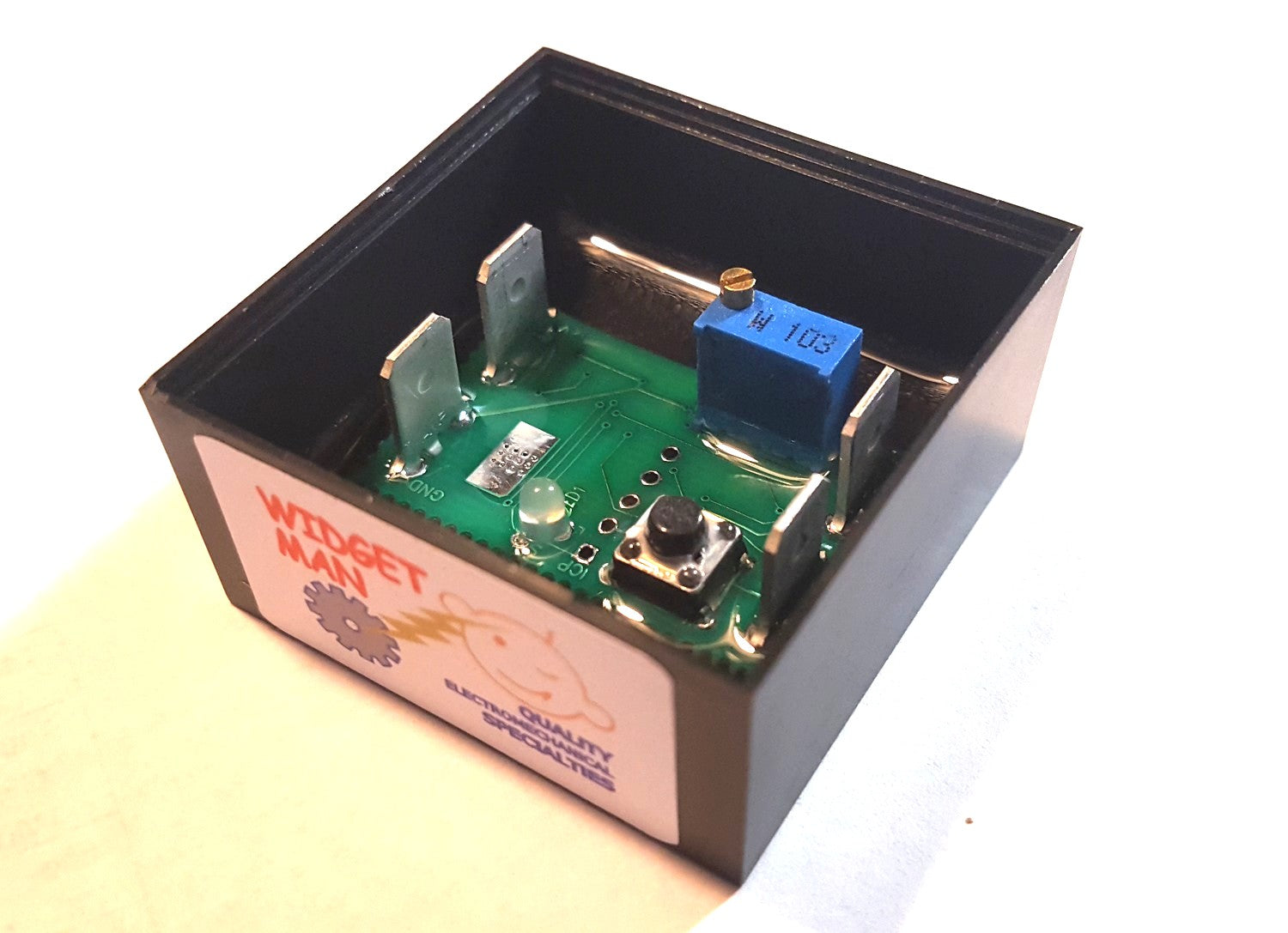

Modern engine swaps all have a chronic issue with TPS throttle and APP pedal position sensors. Every OE manufacturer has their own voltage spec and slope, and every ECU will throw codes if it doesn't see what it expects to see. Good news, because this device is purpose-built to relieve your headache with no muss and no fuss. Two button-pushes and two voltage adjustments is all it takes to match any 5V sensor to any ECU. The VCM learns the idle and WOT voltages for the sensor you feed it, and learns idle and WOT for the ECU by way of a pot adjustment. Once learned, the slopes are stored in EEPROM memory and voila – your sensor and ECU are permanently on the same page. Use in pairs for sensors with crossing slopes or with resistors (included) for parallel percentage slopes. Don't scratch your head over APP/TPS mismatches ever again!
OPERATING FEATURES
OPERATING FEATURES
• HIGH PRECISION AND REPEATABILITY, 0.25% OR BETTER
• WORKS WITH ANY INPUT/OUTPUT SLOPE COMBINATION, PARALLEL OR OPPOSED
ADDITIONAL FEATURES
ADDITIONAL FEATURES

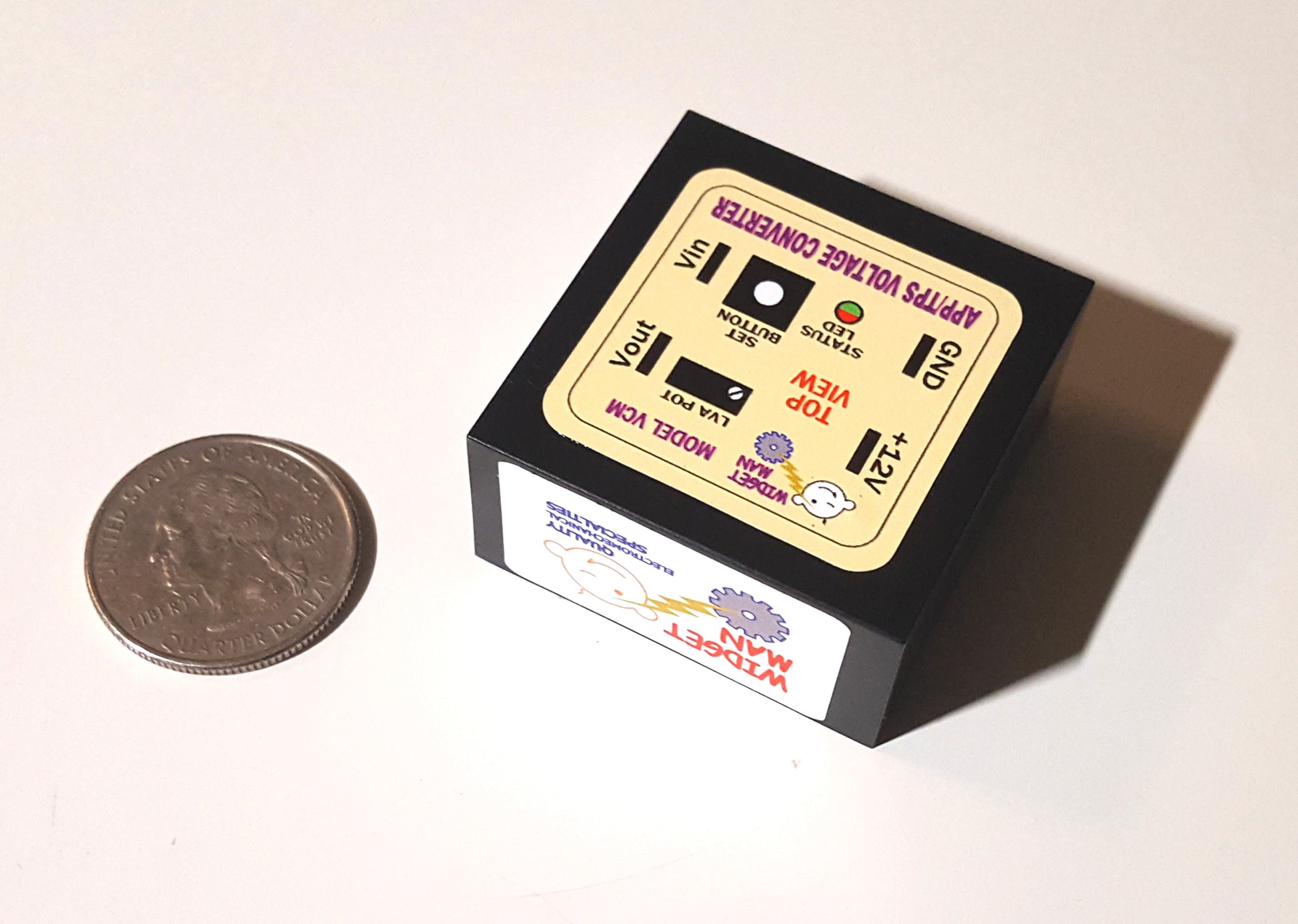

• 1.5 x 1.5 x 0.8” HOUSING, HIDES ANYPLACE
• CONNECTS WITH COMMON 1/4” FASTONS
• WEATHER RESISTANT (WEATHERPROOF IP65 IF ADJUSTMENT POT IS SEALED)
• TEMPERATURE RATED 225oF
• POWER AND OUTPUTS INTERNALLY FUSED, POLARITY PROTECTED

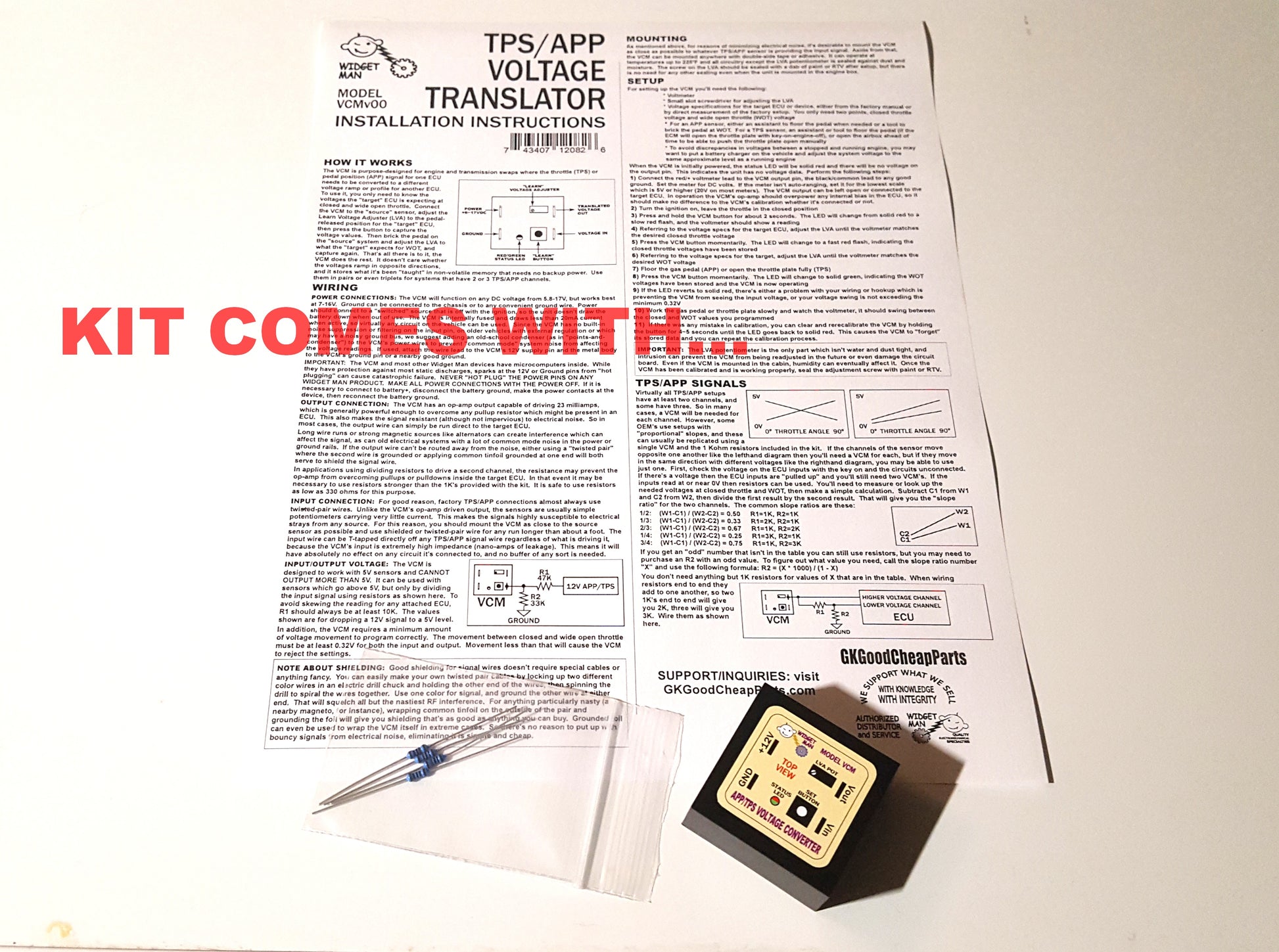

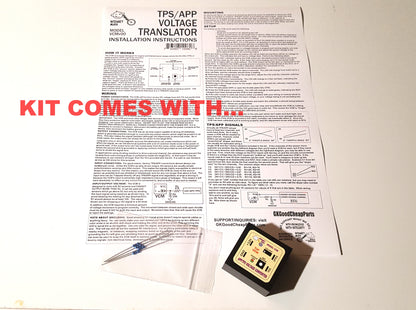

PACKAGE COMES WITH
PACKAGE COMES WITH
• VCM TPS/APP MATCHER
• 1% RESISTOR PACK FOR PARALLEL PERCENTAGE CHANNELS
• FULL INSTRUCTIONS WITH DIAGRAMS
• 90-DAY SELLER WARRANTY, 3-YEAR AT-COST REPLACEMENT
