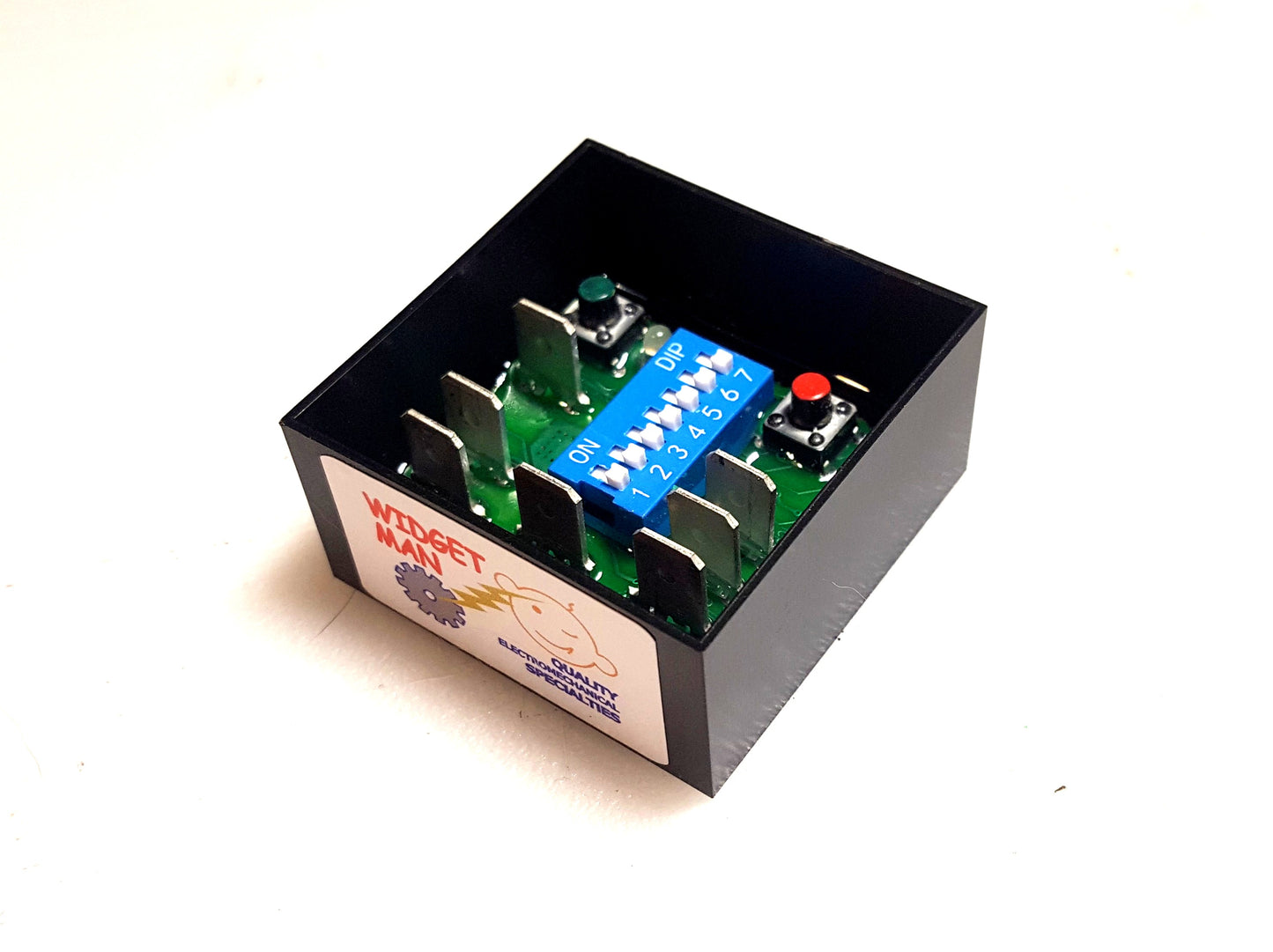

Widget Man FPM -- Self-Learning Brushless Fan Control UPC 767571999200

Widget Man FPM -- Self-Learning Brushless Fan Control UPC 767571999200

$69.99 USD
$69.99 USD
Sale Sold out
FREE USPS DOMESTIC SHIPPING, expedited shipping calculated at checkout

OVER 1,000 SOLD WORLDWIDE

FPMv02a

Low stock: 6 left

USE ANY POPULAR PWM FAN WITH ANY EXISTING TEMP SENSOR!
The FPM is a revolution in e-fan control. Instead of a dozen configuration switches and a pile of mind-numbing sensor charts, you “teach” the FPM your temperature setpoints using your running engine and two buttons. Four simple DIP switches set your fan's PWM frequency and polarity, covering all the most popular brushless fans and pumps. Because it learns your temperature curve, the FPM can work with any ECT sensor or gauge sensor you happen to have, OEM or aftermarket, PTC or NTC. In case you need 100% fan only at an overheat temperature, you can teach the FPM the “normal maximum” and then scale back the fan speed up to 20% using the third button. There's also an override pin that can connect directly to the AC clutch, to either force full speed or increase speed 50% whenever the compressor runs. Like all WM products it's hardy enough to live on top of the fan, and it's IP66 weatherproof if you seal the DIP switches with a dab of RTV. There's nothing else quite like it!

IMPORTANT NOTE FOR GM PCM's AND LS CONVERSIONS

E38 and some other popular GM PCM's may require a separate sensor for the FPM due to the way the PCM runs the sensor circuit. When using the OE ECT sensor for your temperature signal, if after installation the fan turns on or cycles continuously during cold starts until the engine reaches the set temperature, this is caused by the PCM and not the FPM. There is no workaround for this issue, a separate sensor dedicated to the FPM is the only good fix.

OPERATING FEATURES

 • RAIL-TO-RAIL INPUT, WORKS WITH 3V, 5V, 12V SENSORS
 • HIGH INPUT IMPEDANCE -- WILL NOT AFFECT ECT SENSOR READINGS
 • PUSH-PULL AND OPEN-COLLECTOR OUTPUTS
 • “SPEED REDUCTION” FEATURE FOR TEACHING OVERHEAT TEMPERATURES
 • 128/100/50/10/2 Hz AT EITHER POLARITY, DRIVES ALL POPULAR PWM FANS, SPAL, SPAL+, GM/BOSCH, CORVETTE C6/C7, MORE
 • “FORCE ON” INPUT FOR USE WITH A/C CLUTCHES, REDUCIBLE TO +50% FOR POWERFUL FANS

ADDITIONAL FEATURES

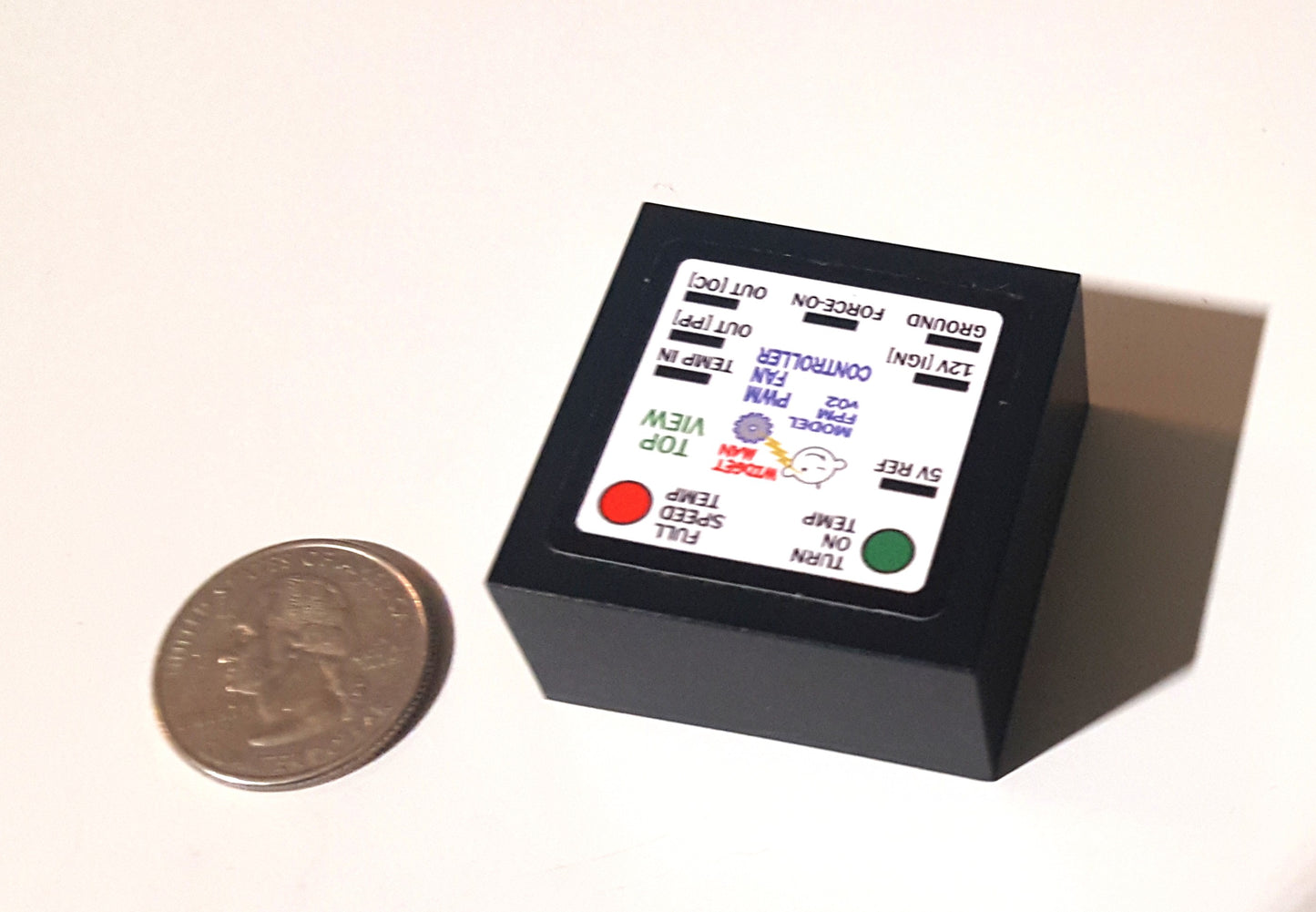

 • 1.5 x 1.5 x 0.8” HOUSING, HIDES ANYPLACE
 • CONNECTS WITH COMMON 1/4” FASTONS
 • WEATHER RESISTANT (WEATHERPROOF IP66 IF SWITCHES ARE SEALED)
 • TEMPERATURE RATED 225F
 • INTERNALLY FUSED, POLARITY PROTECTED
 • COMPATIBLE “RING TERMINAL” TYPE SENSOR AVAILABLE IF NEEDED

PACKAGE COMES WITH

 • FPM FAN CONTROLLER

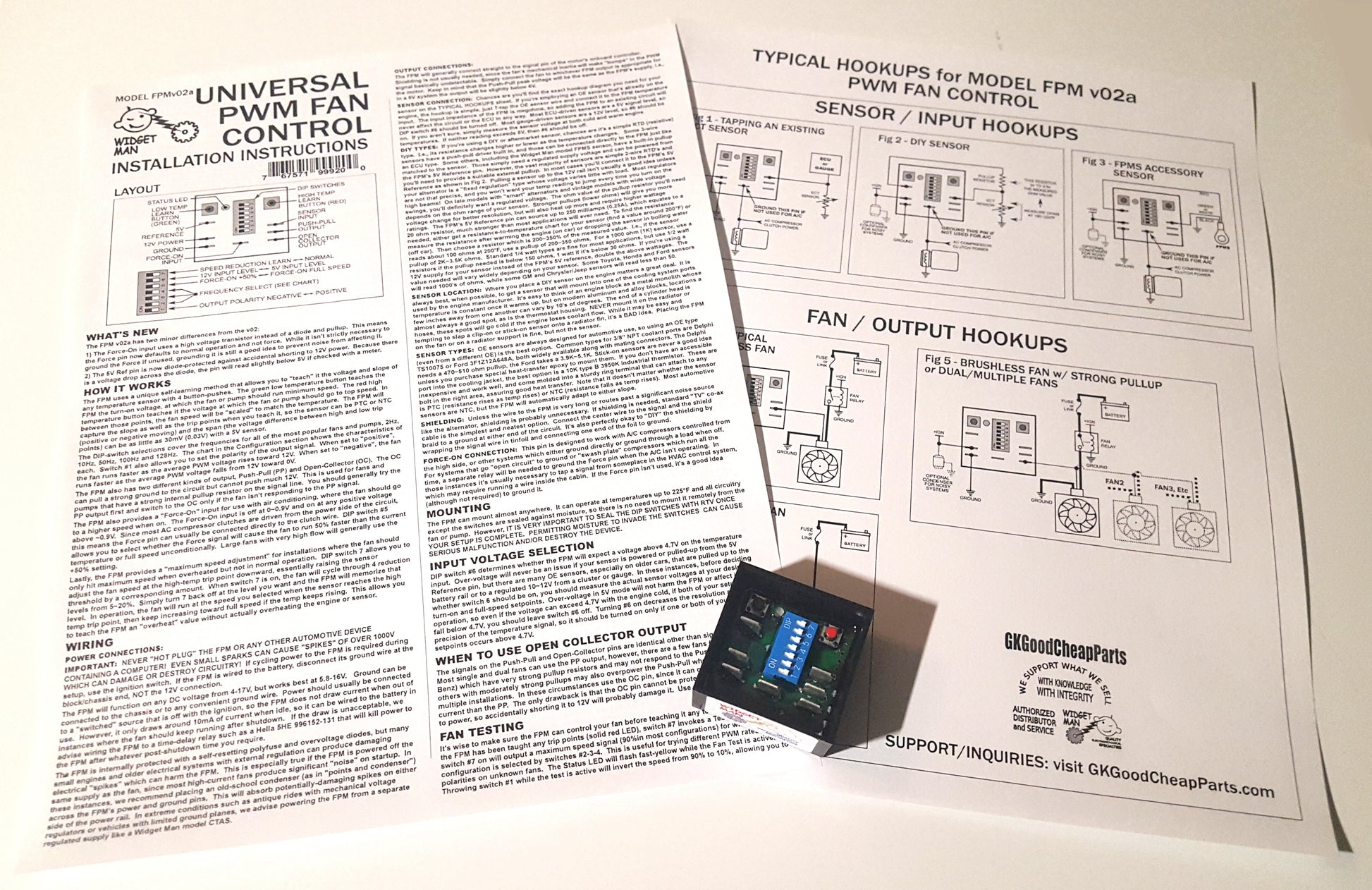

 • FULL INSTRUCTIONS WITH DIAGRAMS
 • 90-DAY SELLER WARRANTY, 3-YEAR AT-COST REPLACEMENT
